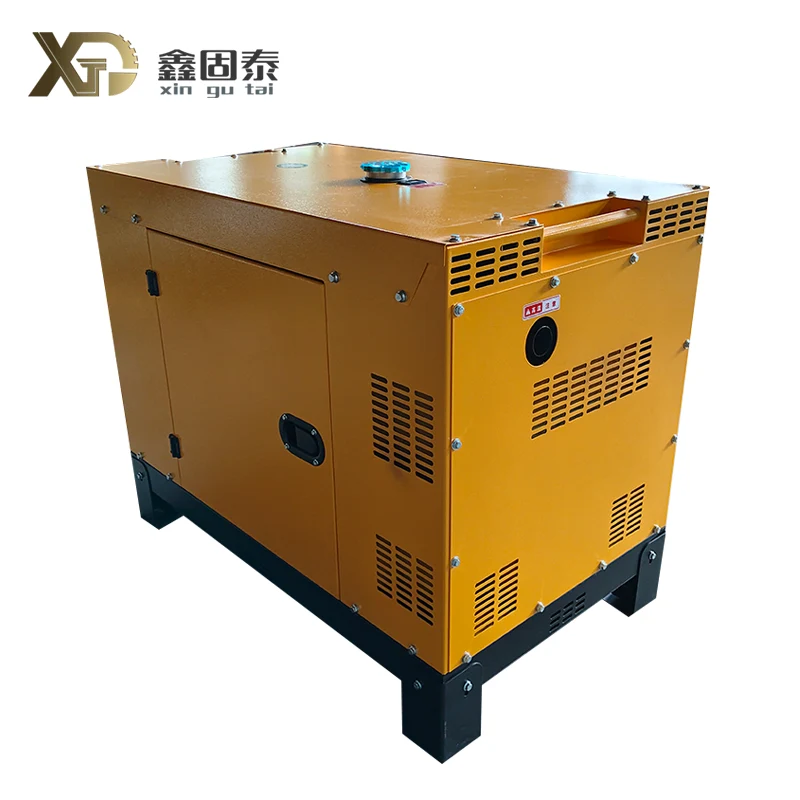

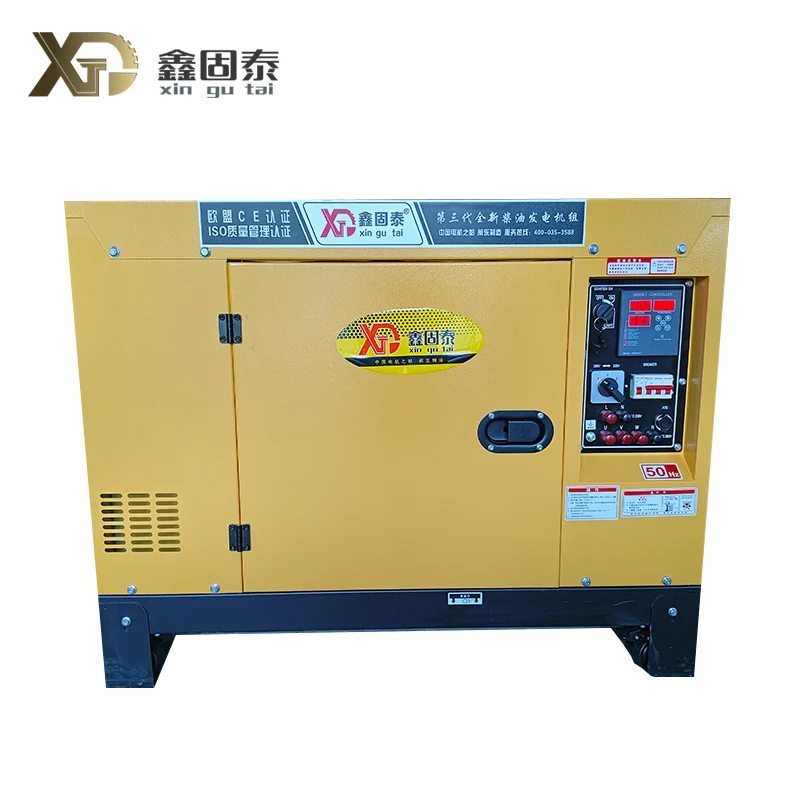

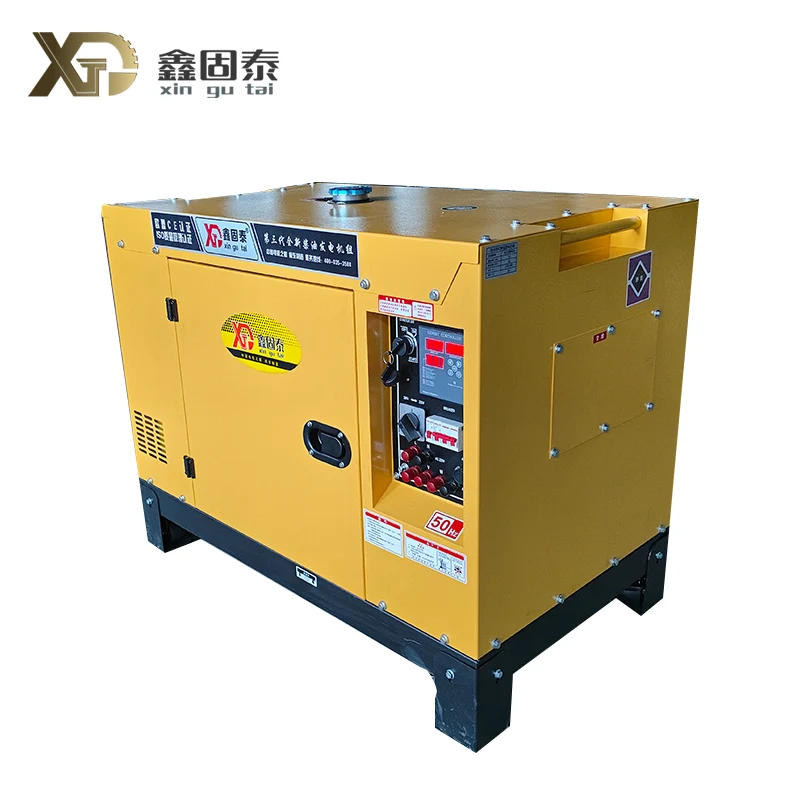

Set Generator Diesel Double Silinder
Sebagai pengeluar profesional, Gutai Machinery ingin memberikan anda set penjana diesel double silinder. Prestasi penyerapan kejutan yang sangat baik dan reka bentuk bunyi yang rendah dari set penjana diesel double silinder menjadikan penjana lebih stabil dan tenang semasa operasi.

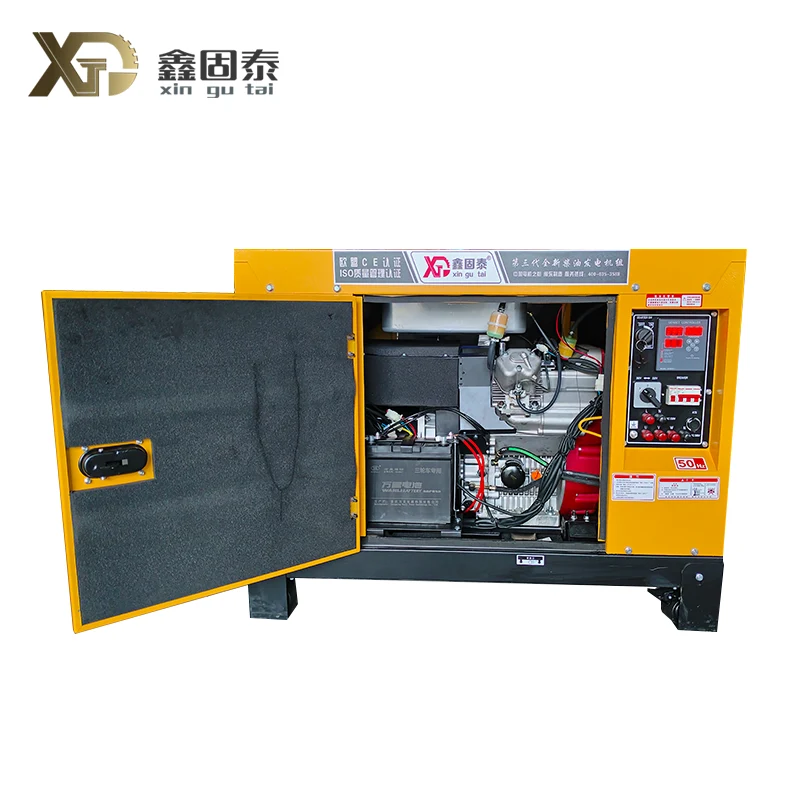

Gutai Machinery is a professional leader China double-cylinder diesel generator set manufacturer with high quality and reasonable price. Double-cylinder diesel generator set is a diesel generator set with a double-cylinder design, which has the advantages of high efficiency, stability and environmental protection. The double-cylinder diesel generator set is mainly composed of diesel engine, generator, control box, fuel tank, storage battery for starting and control, protection device, emergency cabinet and other components.
From its internal structure, it is composed of engine base (including base), cylinder block (including accessories such as cylinder head and carburetor), crankcase, flywheel housing, connecting rod mechanism and engine body bracket.
Technical features of Double-cylinder diesel generator set:
1. The double-cylinder diesel generator set adopts advanced combustion technology and efficient power generation system, which can produce stable power output at low fuel consumption. Its double-cylinder design makes the engine run more smoothly, reduces the possibility of failure, and improves the overall work efficiency.
2. Through the optimization of structure and noise reduction technology, the double-cylinder diesel generator set has a low noise level and small vibration, which is suitable for places with high noise requirements. Its excellent shock absorption performance and low noise design make the generator more stable and quiet during operation.
3. The use of low emission technology reduces the impact of exhaust emissions on the environment. At the same time, its high energy utilization rate further reduces energy consumption and realizes green and environmentally friendly energy use25.
4. It can adapt to a variety of environmental conditions and load requirements, and can maintain stable power output regardless of high temperature, low temperature or humid environment. Its compact structure and light weight make it easy to transport and install.
5.The reasonable structural design makes daily maintenance and upkeep simple and convenient. The long service life also reduces the overall cost of users.
| Power series | 13KVA | 15KVA | 20KVA | ||||
| Model | XGT1300 | XGT1500 | XGT1800 | ||||
| Frequency Hz | 50 | 60 | 50 | 60 | 50 | 60 | |
| Cont.AC output kW | 9.5 | 10.0 | 11.0 | 11.5 | 15.0 | 15.5 | |
| Max.AC output kW | 10.5 | 11.0 | 12.0 | 12.5 | 16.0 | 16.5 | |
| Voltage(A.C) V | 110/220、115/230、120/240、127/220、220/380、230/400、240/415 | ||||||
| DC output V-A | No | ||||||
| Generator | Type | Self excitation、constant voltage、field rotating、2 pole generator | |||||
| Stator size mm | φ245-130 | φ270-150 | φ270-170 | ||||
| Phase | Single phase/3-phase | ||||||
| Power factor Cosφ | 1.0/0.8 | ||||||
| Insulation | F( Stator/rotor) | ||||||
| Engine | Type | V-twin/L-twin、4-cycle、air-cooled diesel engine | |||||
| Model | XGT2V88F | XGT292F | XGT2V95F | ||||
| Borexstroke mm | 2V-88x72 | 2L-92x75 | 2V-95x88 | ||||
| Displacement L | 0.876 | 0.997 | 1.247 | ||||
| Compression ratio | 19.5:1 | 19.5:1 | 20.0:1 | ||||
| Engine speed rpm | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | |
| Rated output kW | 12.5 | 13.5 | 14 | 15.5 | 19 | 21 | |
| Combustion system | Direct injection | ||||||
| Starting system | Electric starter | ||||||
| Lube oil capacity L | 2.7 | 3.8 | 4 | ||||
| Lubrication oil | CD grade or higher(SAE10W/30、SAE15W/40) | ||||||
| Fuel oil | Diesel fuel (BS 2869 A1 or A2) | ||||||
| Unit | Fuel tank capacity L | 26 | |||||
| Fuel consunmption L/h | ≤3.9 | ≤4.5 | ≤4.1 | ≤4.7 | ≤5.5 | ≤6.2 | |
| Noise level at 7m dB(A) | 71~73 | 72~74 | 73~75 | ||||
|
Product dimensions (LxWxH) mm |
1250x650x760 | 1300x650x760 | |||||
|
Packing dimension (LxWxH) mm |
1300x700x880 | 1350x700x880 | |||||
| N.W/G.W kg | 280/300 | 300/320 | 320/340 | ||||
